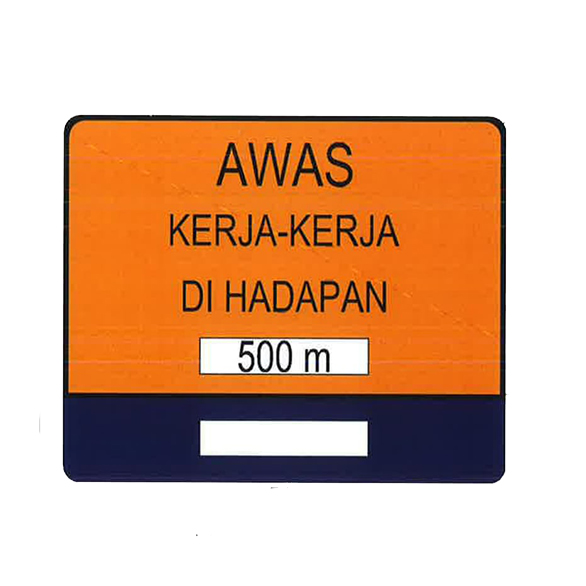

Advance Warning Sign
The Sign Should Be Placed In Advance To Warn The Motorists Of The Construction Areas.
Details
| Dimension (mm) | |||||||
|---|---|---|---|---|---|---|---|
| Height | Width | ||||||
| 1524 | 1829 | ||||||
| Product Code | ||
|---|---|---|
| T.1 | ||
| Colour | ||
|---|---|---|
| Background | - | Fluorescent Orange |
| Background / Lettering | - | Black |
| Background (distance) | - | White |
| Background (service dept.) | - | Blue |
| Lettering (service dept.) | - | White |
| Littering |
|---|
| Series D with wide spacing |
| Note: |
|---|
| 500m is given as an example. The other distances are in between 250m until 2000m as recommended below: |
| i. 2000m |
| ii. 1000m |
| iii. 500m |
| iv. 400m |
| v. 350m |
| vi. 250m |
| The distance information should be in accordance to the Traffic Category. Add the name of the agency at the bottom of the sign eg. JKR, DBKL, TNB, SYABAS, TM, MAXIS, IWK etc. |
